深层陆相页岩渗透性演变的温压耦合实验与响应机制

康志勤; 王嘉伟; 王磊; 李伟; 杨栋; 赵静; 俞凌杰; 赵阳升; 杨小明; 任思齐

doi:10.11698/PED.20250117

石油勘探与开发 >

0 20251205 - 20251205

DOI: https://doi.org/10.11698/PED.20250117

深层陆相页岩渗透性演变的温压耦合实验与响应机制

康志勤 ,
王嘉伟 ,
王磊 ,
李伟 ,
杨栋 ,
赵静 ,
俞凌杰 ,
赵阳升 ,
杨小明 ,
任思齐

展开

1.太原理工大学原位改性采矿教育部重点实验室,太原 030024;
2.太原理工大学国家油页岩开采研发中心原位注蒸汽分中心,太原 030024;
3.东北石油大学环渤海能源研究院,河北秦皇岛 066099;
4.中国石化石油勘探开发研究院无锡石油地质研究所,江苏无锡 214126;
5.山西蒲县蛤蟆沟煤业有限公司, 山西临汾 041200

康志勤（1981-）,男,山西柳林人,博士,太原理工大学副教授,主要从事多孔介质多场耦合理论与技术研究。地址：山西省太原市万柏林区新矿院路太原理工大学虎峪校区,邮政编码：030024。E-mail：kangzhiqin810101@126.com

收稿日期: 2025-03-04

修回日期: 2025-11-16

网络出版日期: 2025-11-18

基金资助

国家自然科学基金（U23B2088）; 国家重点研发计划（2019YFA0705501）; 中央引导地方科技发展资金项目（YDZJSX20231A013）

收起

Temperature-pressure coupled experiments and response mechanisms of permeability evolution in deep continental shale

KANG Zhiqin ,
WANG Jiawei ,
WANG Lei ,
LI Wei ,
YANG Dong ,
ZHAO Jing ,
YU Lingjie ,
ZHAO Yangsheng ,
YANG Xiaoming ,
REN Siqi

Expand

1. Key Laboratory of In-situ Property Improving Mining of Ministry of Education, Taiyuan University of Technology, Taiyuan 030024, China;
2. The In-situ Steam Injection Branch of State Center for Research and Development of Oil Shale Exploitation, Taiyuan University of Technology, Taiyuan 030024, China;
3. Bohai Rim Energy Research Institute, Northeast Petroleum University, Qinhuangdao 066099, China;
4. Wuxi Petroleum Geology Institute, Sinopec Exploration & Production Research Institute, Wuxi 214126, China;
5. Shanxi Puxian Hamagou Coal Industry Co., Ltd., Linfen 041200, China

Received date: 2025-03-04

Revised date: 2025-11-16

Online published: 2025-11-18

Fold

摘要

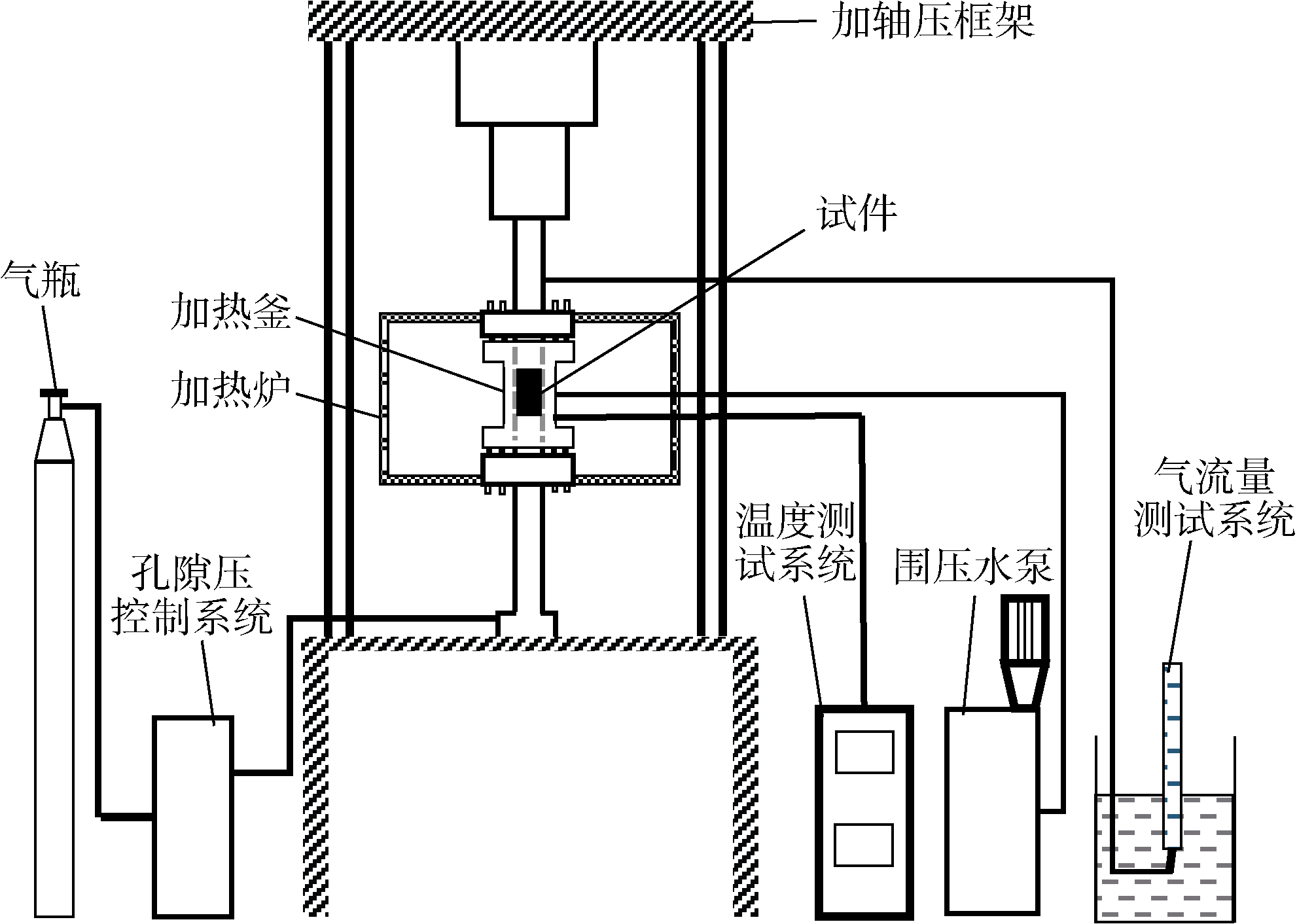

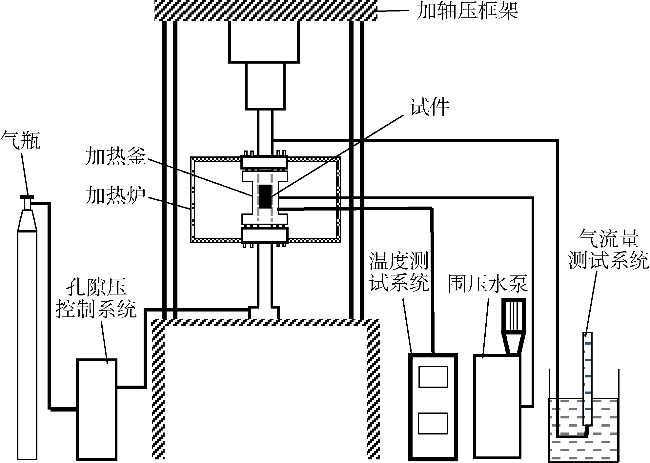

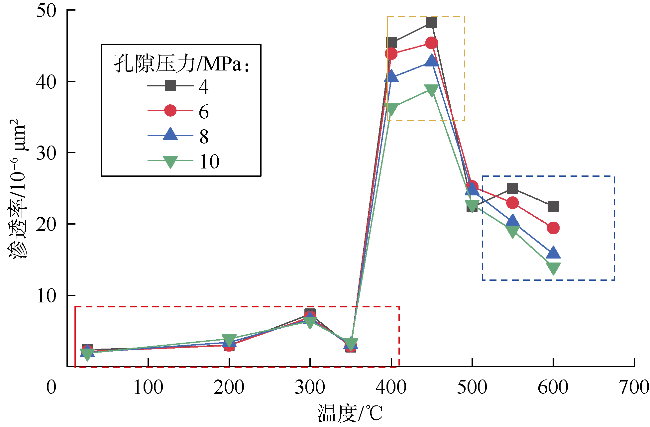

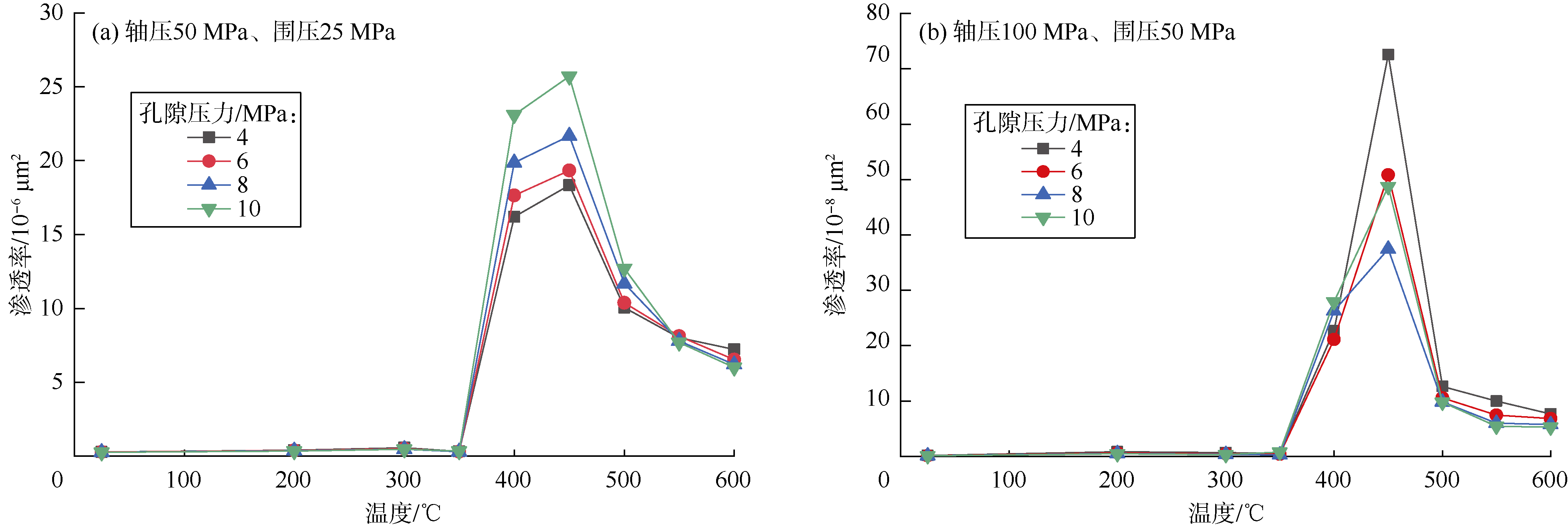

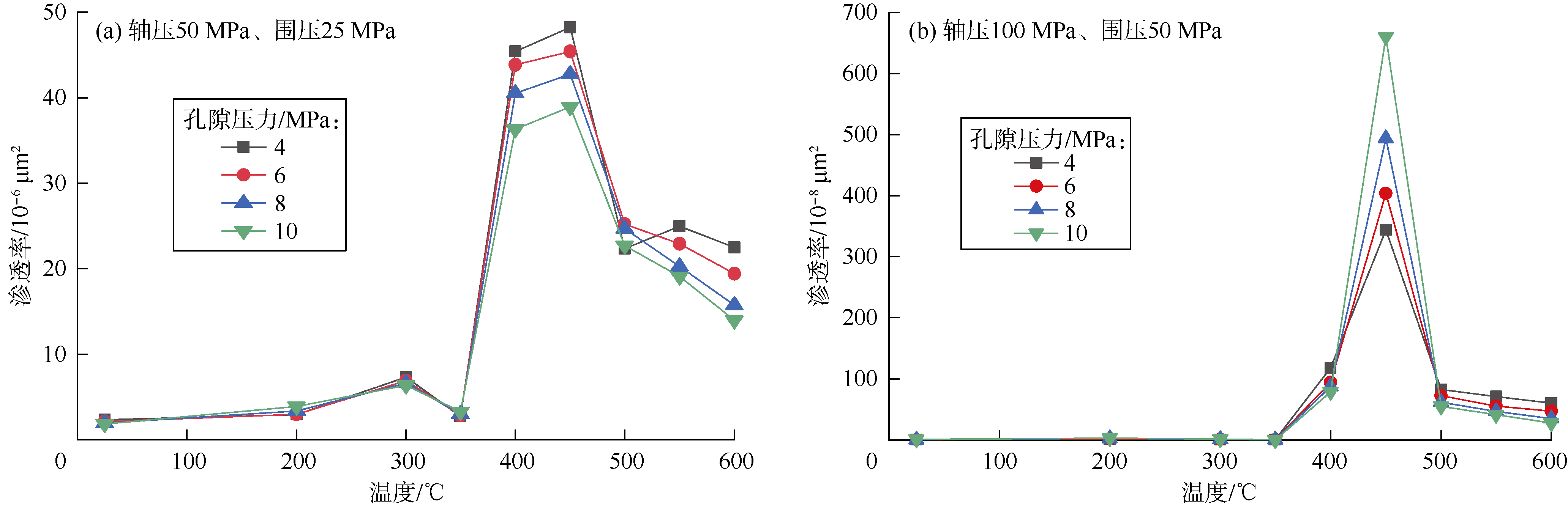

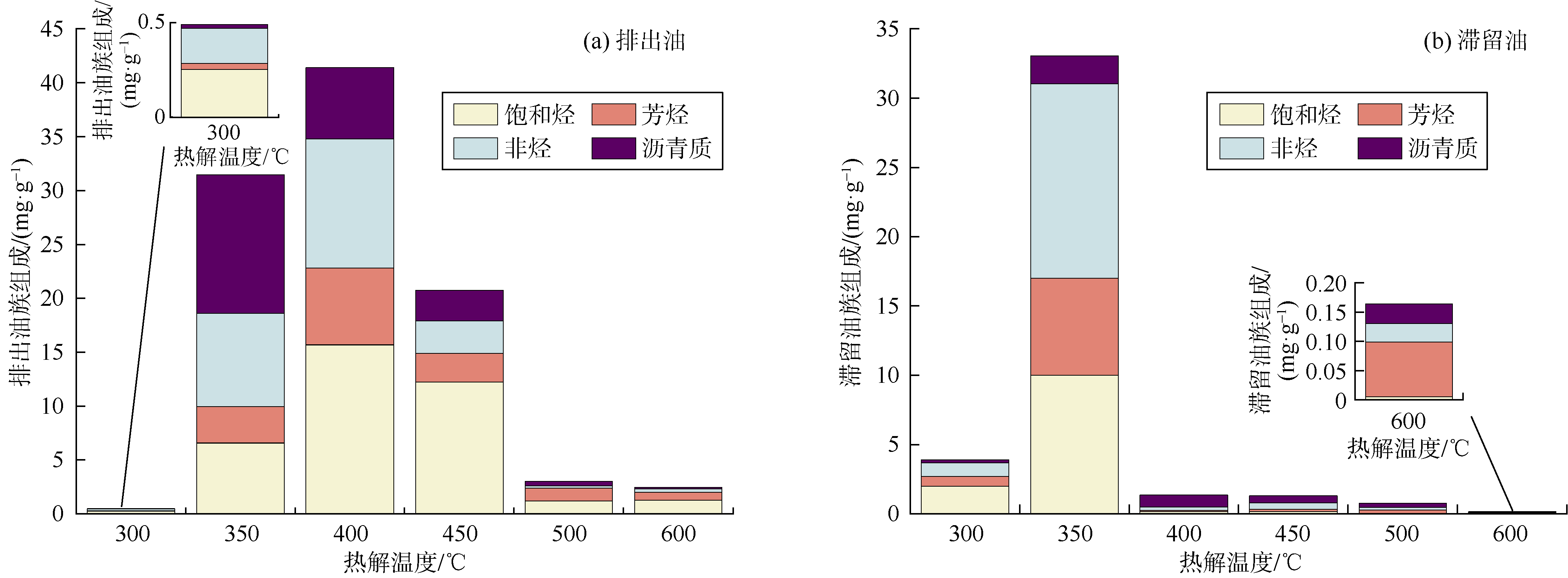

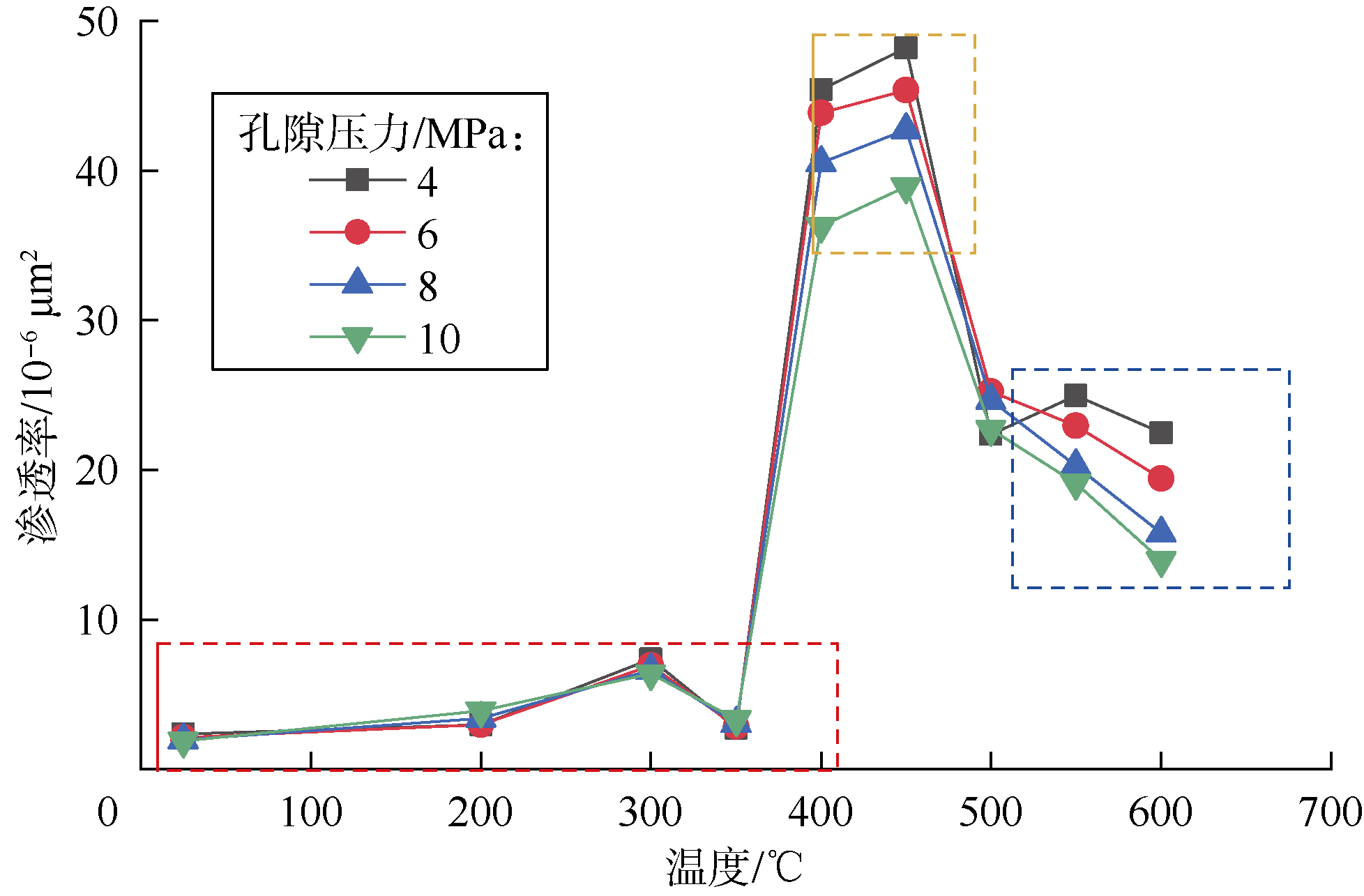

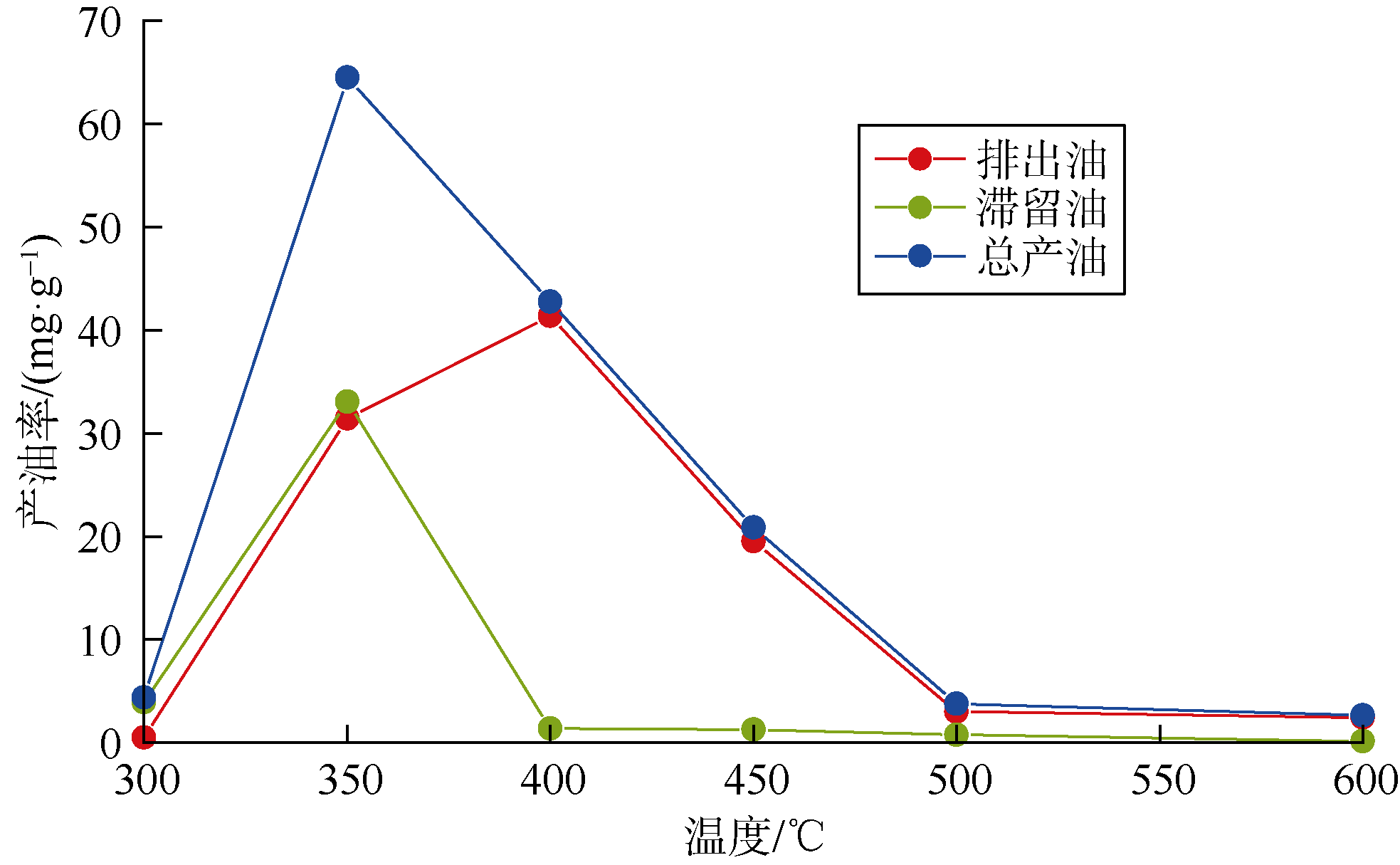

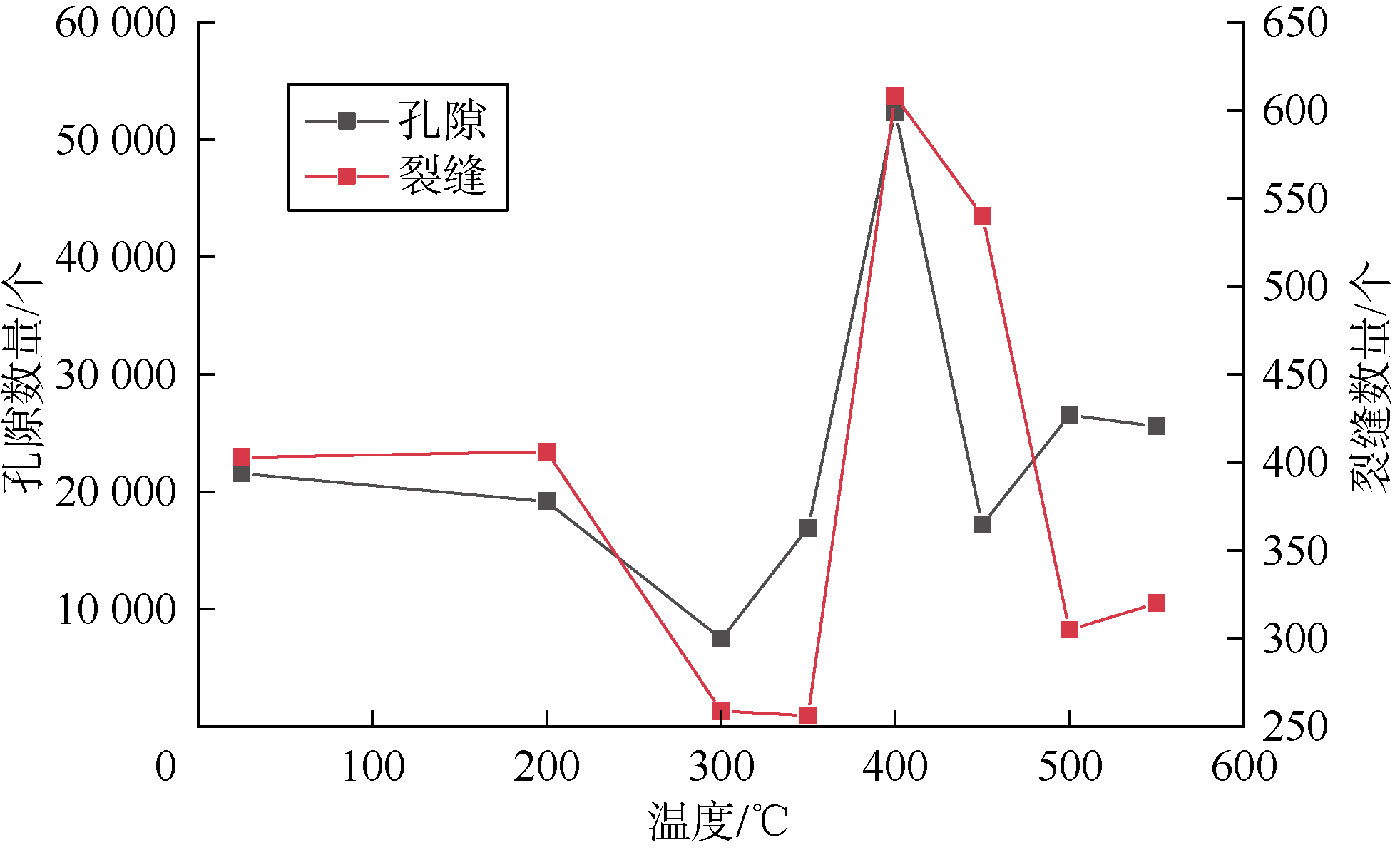

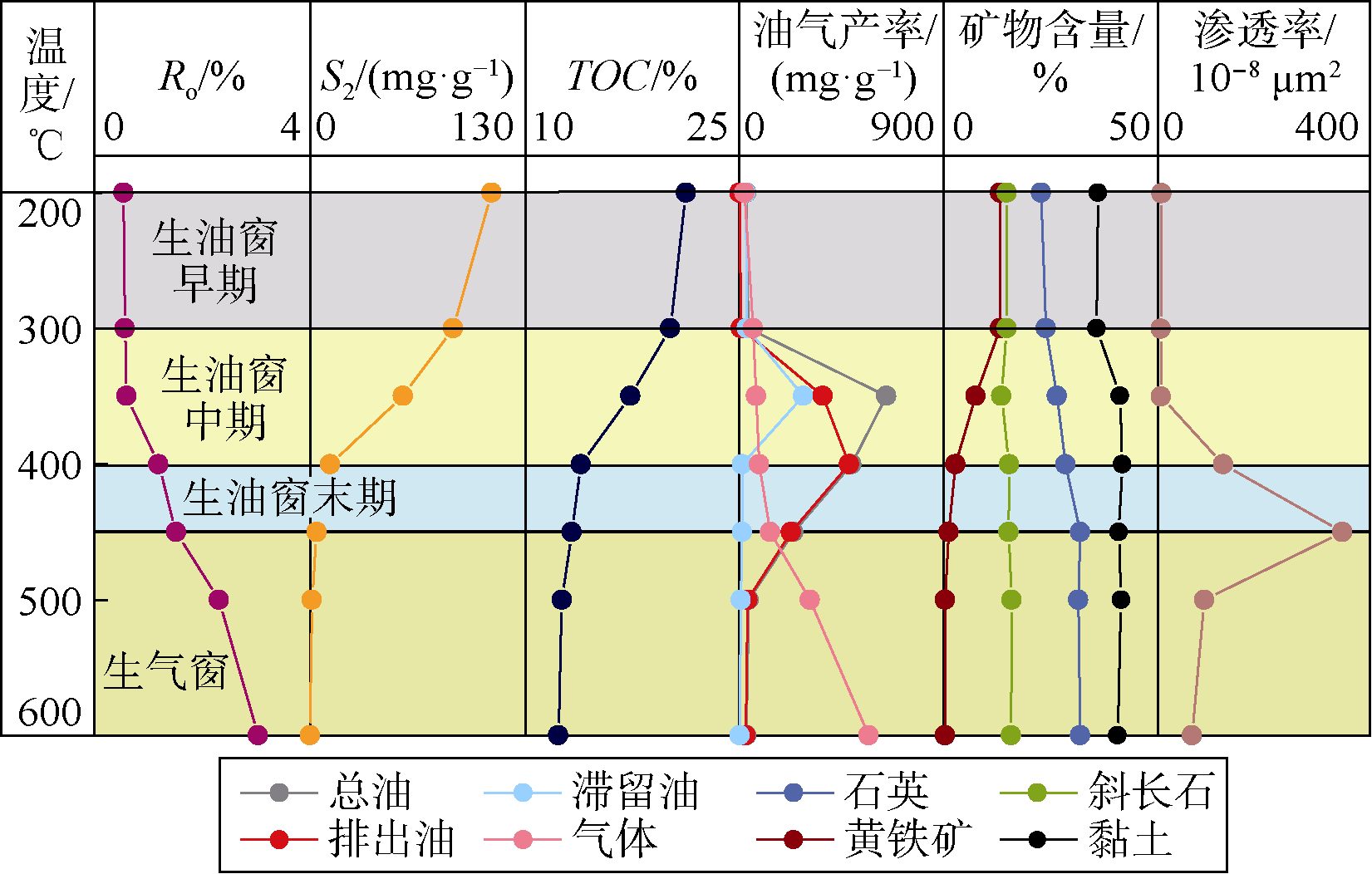

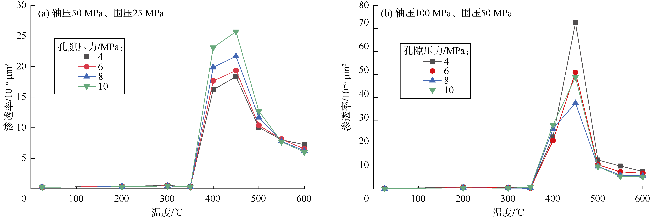

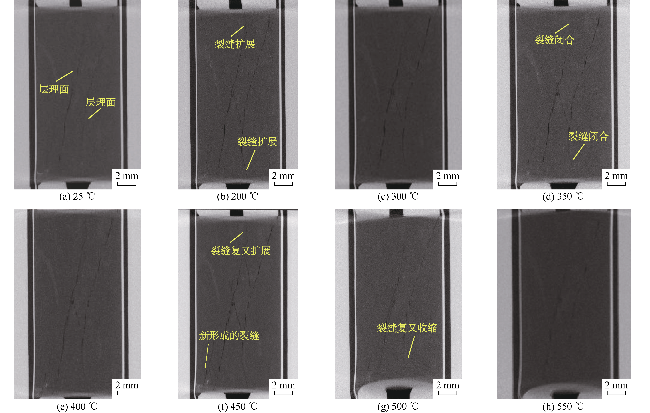

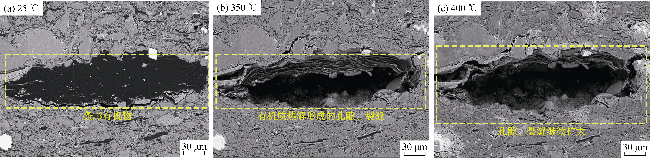

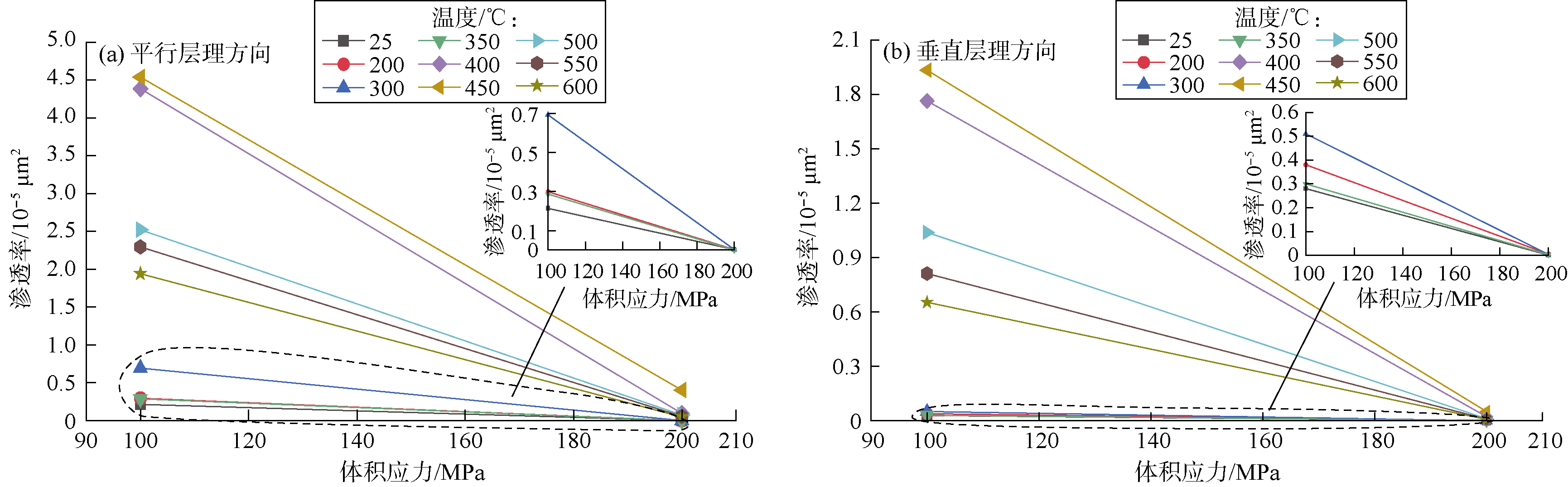

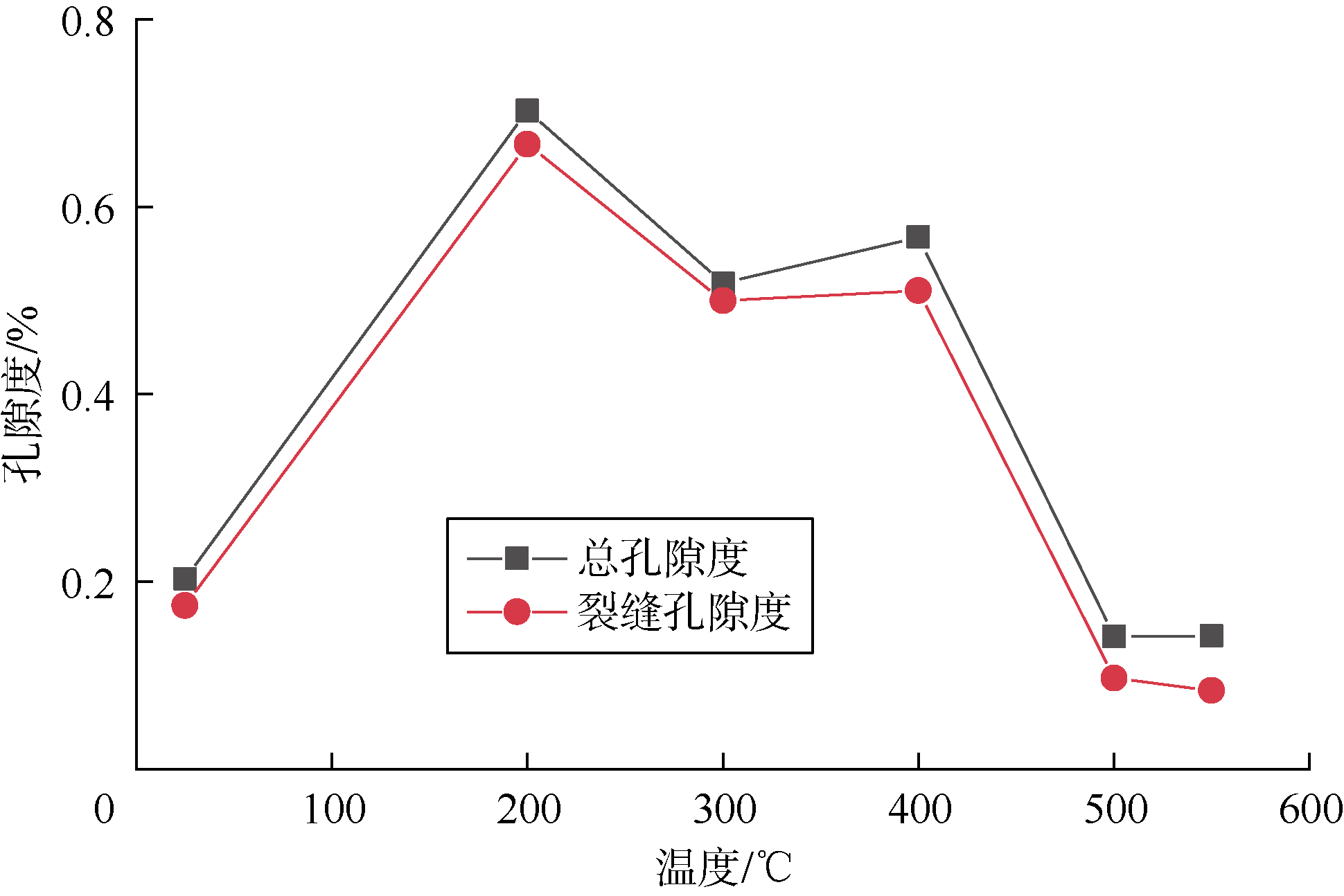

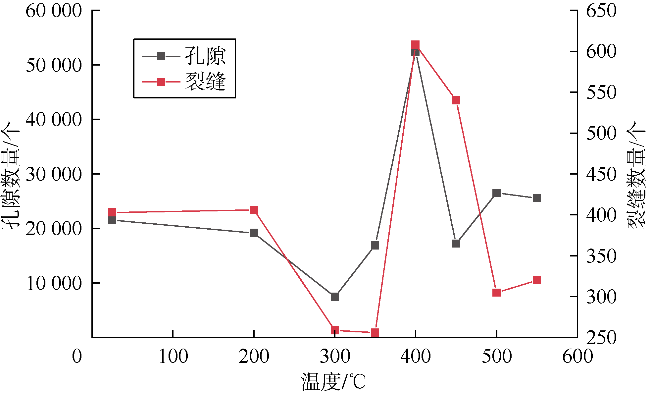

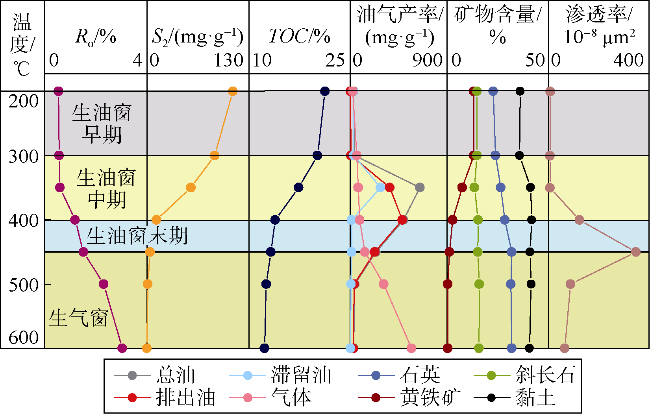

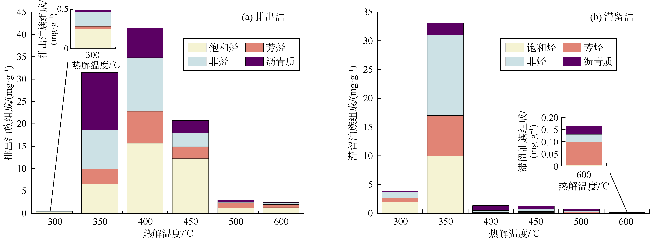

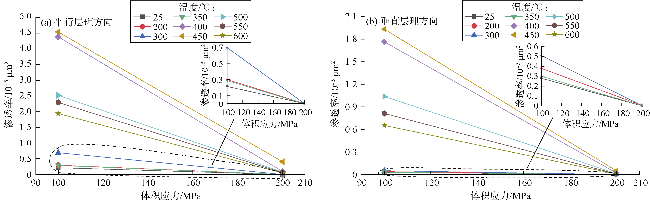

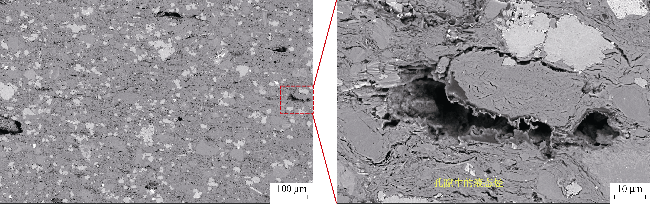

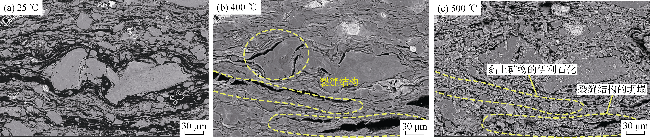

基于自主研制的岩石高应力固-流-热耦合渗透实验系统以及岩石在线THMC-CT耦合试验系统,采用多尺度研究手段和方法,对深层陆相页岩高温-高应力耦合作用下渗透率变化规律、原位高温条件下孔缝定量表征及动态演化过程、页岩渗透率、热解产油及孔缝结构宏微观响应的演化机理进行研究。结果表明：①陆相页岩温压耦合提升作用下渗透率演变具有明显的三阶段特征,分别是低渗透率阶段（25~350 ℃）、渗透率快速增加阶段（350~450 ℃）和渗透率降低阶段（450~600 ℃）。②在原位恒定应力、升温作用下陆相页岩裂缝表现为两次扩展（25~300 ℃、350~450 ℃）与两次收缩（300~350 ℃、450~550 ℃）的动态演化特征,验证了渗透率演化的三阶段特征。升温条件下渗透率的主要响应机制为：①温度350 ℃时,滞留油中不易流动的重质液态烃充填孔缝,导致渗透性变差。②350~450 ℃温度范围,热破裂、有机质热解促使不同尺度孔缝的数量、张开度及连通性迅速提高,渗透率大幅度增加。③温度高于450 ℃,黏土矿物伊利石化造成基质松软坍塌,岩石骨架由脆性变形转化为塑性变形,表现为渗透率明显降低。研究成果有望为页岩油地下原位转化与商业开发提供重要的理论依据和工程技术参数。

关键词： 深部陆相页岩; 页岩油; 原位改置; 高温高压; 渗透率; 实时CT扫描; 响应机制

本文引用格式

康志勤 , 王嘉伟 , 王磊 , 李伟 , 杨栋 , 赵静 , 俞凌杰 , 赵阳升 , 杨小明 , 任思齐 . 深层陆相页岩渗透性演变的温压耦合实验与响应机制[J]. 石油勘探与开发, 0 : 20251205 -20251205 . DOI: 10.11698/PED.20250117

Abstract

Based on the self-developed high-stress solid-fluid-thermal coupling permeability experimental system and the in-situ rock THMC-CT coupling testing system, multi-scale research approaches were employed to investigate the permeability evolution of deep continental shale under coupled high-temperature and high-stress conditions, the quantitative characterization and dynamic evolution of pore-fracture structures under in-situ high-temperature environments, and the evolutionary mechanisms governing the macro-micro responses of shale permeability, thermal oil generation, and pore-fracture structures. The results show that: (1) The permeability evolution of continental shale under thermo-pressure coupling exhibits distinct three-stage characteristics: the low permeability stage (25-350 ℃), the rapid permeability increase stage (350-450 ℃), and the permeability decline stage (450-600 ℃). (2) Under in-situ constant stress and elevated temperature conditions, the fractures in continental shale undergo two expansion phases (25-300 ℃, 350-450 ℃) and two closure phases (300-350 ℃, 450-550 ℃), following a dynamic evolution pattern. The three-stage permeability evolution under thermo- pressure coupling in continental shale was validated. The main response mechanisms are as follows: (1) At 350 ℃, the permeability decreases due to the filling of pores and fractures by heavy, immobile liquid hydrocarbons retained within the rock. (2) In the temperature range of 350 ℃ to 450 ℃, thermal fracturing and the pyrolysis of organic matter significantly increase the number, aperture, and connectivity of pores and fractures at different scales, leading to a substantial enhancement in permeability. (3) At temperatures above 450 ℃, illitization of clay minerals causes the collapse of the rock framework. As a result, the rock deformation transitions from brittle to plastic behavior, leading to a marked decrease in permeability. The research findings provide important theoretical foundations and engineering technological parameters for commercial development of underground in-situ shale oil conversion.

Key words： deep continental shale; shale oil; in-situ modification; high temperature and high pressure; permeability; real-time CT scanning; response mechanism

参考文献

[1] 赵文智, 胡素云, 侯连华, 等. 中国陆相页岩油类型、资源潜力及与致密油的边界[J]. 石油勘探与开发, 2020, 47(1): 1-10.
ZHAO Wenzhi, HU Suyun, HOU Lianhua, et al.Types and resource potential of continental shale oil in China and its boundary with tight oil[J]. Petroleum Exploration and Development, 2020, 47(1): 1-10.
[2] DAI J X, ZOU C N, DONG D Z, et al.Geochemical characteristics of marine and terrestrial shale gas in China[J]. Marine and Petroleum Geology, 2016, 76: 444-463.
[3] 赵文智, 卞从胜, 李永新, 等. 陆相中高成熟页岩油 “组分流动” 条件及其在提高页岩油产量中的作用[J]. 石油勘探与开发, 2024, 51(4): 720-730.
ZHAO Wenzhi, BIAN Congsheng, LI Yongxin, et al.“Component flow” conditions and its effects on enhancing production of continental medium-to-high maturity shale oil[J]. Petroleum Exploration and Development, 2024, 51(4): 720-730.
[4] ONGENA J, VAN OOST G.Energy for future centuries: Prospects for fusion power as a future energy source[J]. Fusion Science and Technology, 2012, 61(2T): 3-16.
[5] WANG L, YANG D, ZHANG Y X, et al.Research on the reaction mechanism and modification distance of oil shale during high-temperature water vapor pyrolysis[J]. Energy, 2022, 261(Part B): 125213.
[6] 袁士义, 韩海水, 王红庄, 等. 油田开发提高采收率新方法研究进展与展望[J]. 石油勘探与开发, 2024, 51(4): 841-854.
YUAN Shiyi, HAN Haishui, WANG Hongzhuang, et al.Research progress and potential of new enhanced oil recovery methods in oilfield development[J]. Petroleum Exploration and Development, 2024, 51(4): 841-854.
[7] WANG L, WANG Z Q, ZHAO Y S, et al.Macroscopic seepage and microstructural behavior of oil shale using water vapor injection during mining[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2025, 17(3): 1489-1509.
[8] ZHANG T L, GUO W, YANG L H, et al.Effect of permeability and oil content on the autothermal pyrolysis in-situ conversion technology[J]. Geoenergy Science and Engineering, 2025, 247: 213692.
[9] WANG L, ZHANG R, WANG G Y, et al.Effect of long reaction distance on gas composition from organic-rich shale pyrolysis under high-temperature steam environment[J]. International Journal of Coal Science & Technology, 2024, 11(1): 34.
[10] BACKEBERG N R, IACOVIELLO F, RITTNER M, et al.Quantifying the anisotropy and tortuosity of permeable pathways in clay-rich mudstones using models based on X-ray tomography[J]. Scientific Reports, 2017, 7(1): 14838.
[11] RABBANI A, BAVCHEV T G, AYATOLLAHI S, et al.Evolution of pore-scale morphology of oil shale during pyrolysis: A quantitative analysis[J]. Transport in Porous Media, 2017, 119(1): 143-162.
[12] ZHAO J, KANG Z Q.Permeability of oil shale under in situ conditions: Fushun oil shale (China) experimental case study[J]. Natural Resources Research, 2021, 30(1): 753-763.
[13] WANG G Y, YANG D, ZHAO Y S, et al.Experimental investigation on anisotropic permeability and its relationship with anisotropic thermal cracking of oil shale under high temperature and triaxial stress[J]. Applied Thermal Engineering, 2019, 146: 718-725.
[14] SHENG G L, JAVADPOUR F, SU Y L.Dynamic porosity and apparent permeability in porous organic matter of shale gas reservoirs[J]. Fuel, 2019, 251: 341-351.
[15] 尹小涛, 党发宁, 丁卫华, 等. 基于单轴压缩CT实验的砂岩破损机制[J]. 岩石力学与工程学报, 2006, 25(增刊2): 3891-3897.
YIN Xiaotao, DANG Faning, DING Weihua, et al.Breakage mechanism of sandstone based on uniaxial compression CT test[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25(S2): 3891-3897.
[16] 葛修润, 任建喜, 蒲毅彬, 等. 岩石疲劳损伤扩展规律CT细观分析初探[J]. 岩土工程学报, 2001, 23(2): 191-195.
GE Xiurun, REN Jianxi, PU Yibin, et al.Primary study of CT real-time testing of fatigue meso-damage propagation law of rock[J]. Chinese Journal of Geotechnical Engineering, 2001, 23(2): 191-195.
[17] GE X R, REN J X, PU Y B, et al.Real-in time CT test of the rock meso-damage propagation law[J]. Science in China Series E: Technological Sciences, 2001, 44(3): 328-336.
[18] CHEN S J, REN J X, SONG Y J, et al.Salt freeze-thaw damage characteristics of concrete based on computed tomography[J]. Tehnički Vjesnik, 2019, 26(6): 1753-1763.
[19] 任建喜, 景帅, 张琨. 冲击倾向性煤岩动静载下破坏机理及声发射特性研究[J]. 煤炭科学技术, 2021, 49(3): 57-63.
REN Jianxi, JING Shuai, ZHANG Kun.Study on failure mechanism and acoustic emission characteristics of outburst proneness coal rock under dynamic and static loading[J]. Coal Science and Technology, 2021, 49(3): 57-63.
[20] 王宇, 李晓, 毛天桥, 等. 三轴循环荷载下土石混合体细观结构劣化实时CT扫描试验研究[J]. 工程地质学报, 2023, 31(6): 1820-1832.
WANG Yu, LI Xiao, MAO Tianqiao, et al.On meso-structural changes of bimsoil under triaxial cyclic loads using in-situ X-ray computed tomography (CT)[J]. Journal of Engineering Geology, 2023, 31(6): 1820-1832.
[21] SHI J H, FENG Z C, ZHOU D, et al.Analysis of the permeability evolution law of in situ steam pyrolysis of bituminous coal combing with in situ CT technology[J]. Energy, 2023, 263(Part D): 126009.
[22] SAIF T, LIN Q Y, BIJELJIC B, et al.Microstructural imaging and characterization of oil shale before and after pyrolysis[J]. Fuel, 2017, 197: 562-574.
[23] SAIF T, LIN Q Y, SINGH K, et al.Dynamic imaging of oil shale pyrolysis using synchrotron X‐ray microtomography[J]. Geophysical Research Letters, 2016, 43(13): 6799-6807.
[24] ZHAO X, HE E J, GUO J C, et al.The study of fracture propagation in pre-acidized shale reservoir during the hydraulic fracturing[J]. Journal of Petroleum Science and Engineering, 2020, 184: 106488.
[25] 孙龙德, 朱如凯, 张天舒, 等. 陆相页岩沉积学研究进展与发展方向: 以大庆古龙页岩为例[J]. 石油勘探与开发, 2024, 51(6): 1183-1198.
SUN Longde, ZHU Rukai, ZHANG Tianshu, et al.Advances and trends of non-marine shale sedimentology: A case study from Gulong Shale of Daqing Oilfield, Songliao Basin, NE China[J]. Petroleum Exploration and Development, 2024, 51(6): 1183-1198.
[26] ZHU H Y, TAO L, LIU Q Y, et al.Fracture characteristics and change of permeability under the influence of natural fractures: Experimental study of Wufeng-Longmaxi shale[J]. SPE Reservoir Evaluation & Engineering, 2018, 21(2): 225-237.
[27] 国家能源局. 油页岩含油率的测定格金法: NB/T 51011—2014[S]. 北京: 中国标准出版社, 2014.
National Energy Administration.Determination of oil content in oil shale—Gray-King assay method: NB/T 51011—2014[S]. Beijing: China Standards Press, 2014.
[28] 中国石油天然气集团公司. 储层岩石润湿性测定自吸离心法: SY/T 6414—2014[S] 北京:石油工业出版社, 2014.
China National Petroleum Corporation. Determination of reservoir rock wettability—Spontaneous imbibition centrifugation method:SY/T 6414—2014[S]. Beijing: Petroleum Industry Press, 2014.
[29] ZOU G G, ZHANG Q H, PENG S P, et al.Influence of geological factors on coal permeability in the Sihe coal mine[J]. International Journal of Coal Science & Technology, 2022, 9(1): 6.
[30] XIAO Z Y, WANG G, WANG C S, et al.Permeability evolution and gas flow in wet coal under non-equilibrium state: Considering both water swelling and process-based gas swelling[J]. International Journal of Mining Science and Technology, 2023, 33(5): 585-599.
[31] WANG L, WANG G Y, YANG D, et al.Research on the mechanical properties and anisotropy evolution of uniaxial compression of oil shale under real-time high-temperature steam[J]. Rock Mechanics and Rock Engineering, 2025, 58(2): 1911-1932.
[32] TANG H B, WANG L, YANG D, et al.Dynamic in-situ CT imaging to study meso-structure evolution and fracture mechanism of shale during thermal-mechanical coupling condition[J]. Engineering Fracture Mechanics, 2025, 313: 110683.
[33] MOLINARI A, LONARDELLI I, DEMETRIO K, et al.Effect of the particle size on the thermal stability of nanostructured aluminum powder: Dislocation density and second-phase particles controlling the grain growth[J]. Journal of Materials Science, 2010, 45(24): 6739-6746.
[34] SIDERIDIS E, KYTOPOULOS V N, PAPADOPOULOS G A, et al.The effect of low-filler volume fraction on the elastic modulus and thermal expansion coefficient of particulate composites simulated by a multiphase model[J]. Journal of Applied Polymer Science, 2009, 111(1): 203-216.
[35] GUO W, PAN J F, YANG Q C, et al.Study of the residual carbon oxidation trigger mechanism in fractured oil shale formation under real condition[J]. International Communications in Heat and Mass Transfer, 2025, 160: 108369.
[36] OUGIER-SIMONIN A, RENARD F, BOEHM C, et al.Microfracturing and microporosity in shales[J]. Earth-Science Reviews, 2016, 162: 198-226.
[37] CAWOOD F T, FENN A G, GROBLER H C I, et al. Sustainability and South Africa’s mature mines: The innovation imperative[J]. Green and Smart Mining Engineering, 2024, 1(3): 299-306.
