Influence of monoethanolamine on thermal stability of starch in water based drilling fluid system
NASIRI Alireza1, NIK Mohammad Amin Sharif2, HEIDARI Hamidreza3, VALIZADEH Majid1, NIK Mohammad Amin Sharif2, HEIDARI Hamidreza3, VALIZADEH Majid1
1. Research Institute of Petroleum Industry, Tehran, Iran
2. School of Mining Engineering, College of Engineering, University of Tehran, Tehran, Iran
3. Department of Chemical and Petroleum Engineering, Sharif University of Technology, Tehran, Iran
Abstract

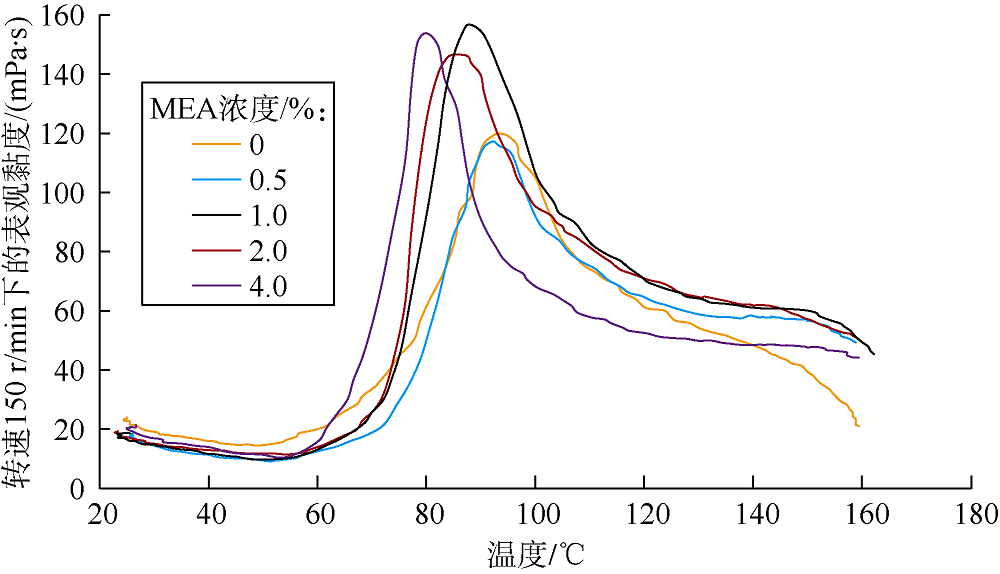

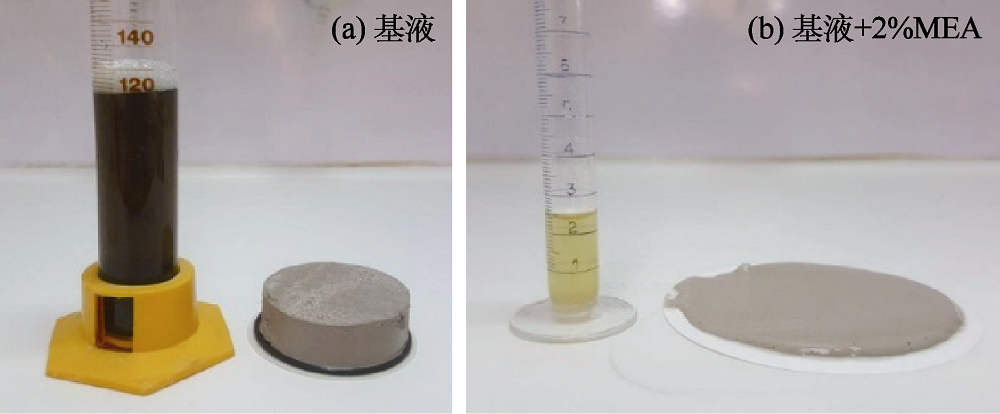

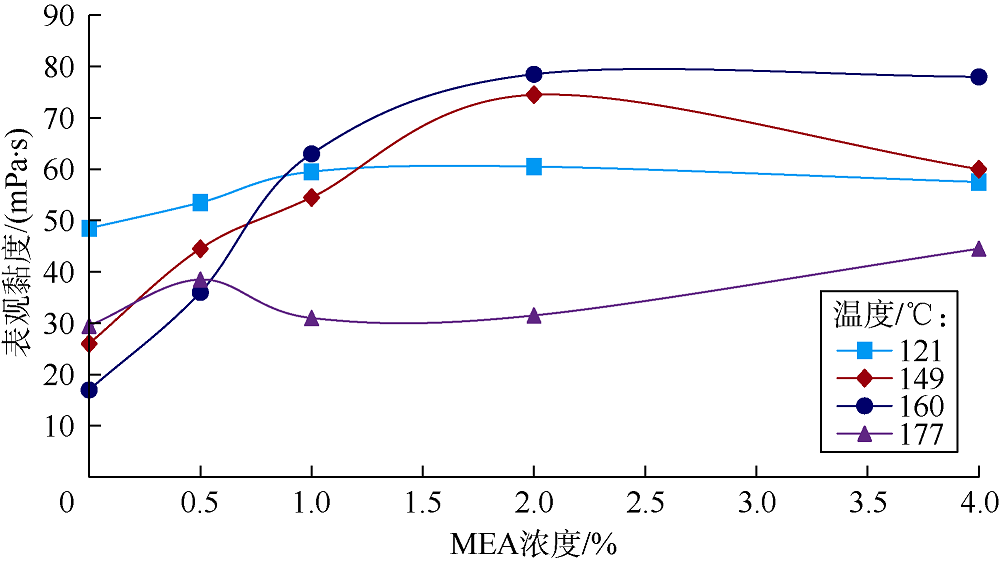

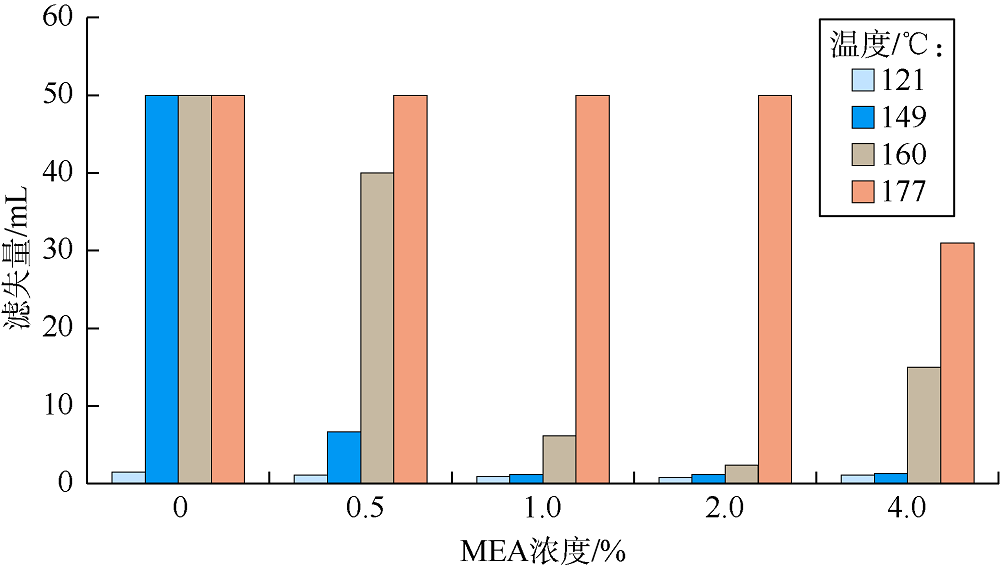

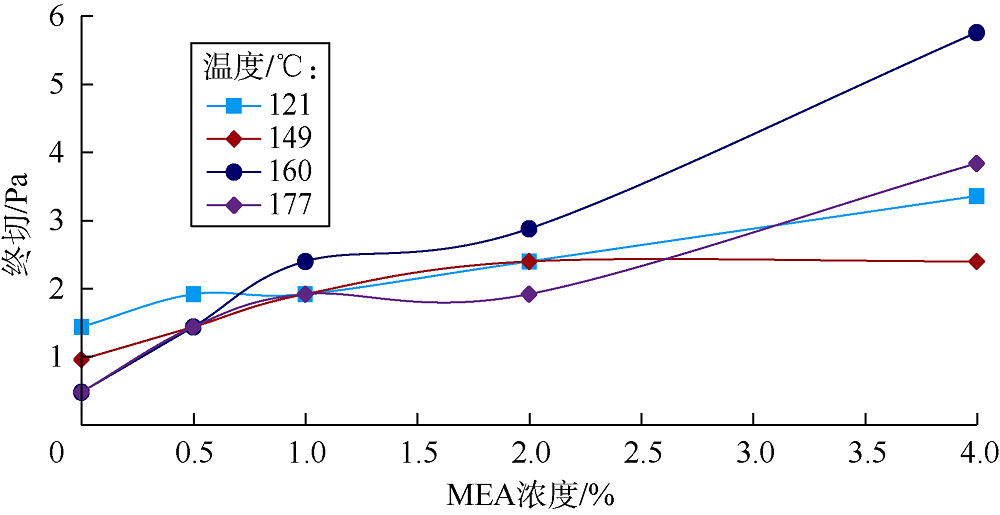

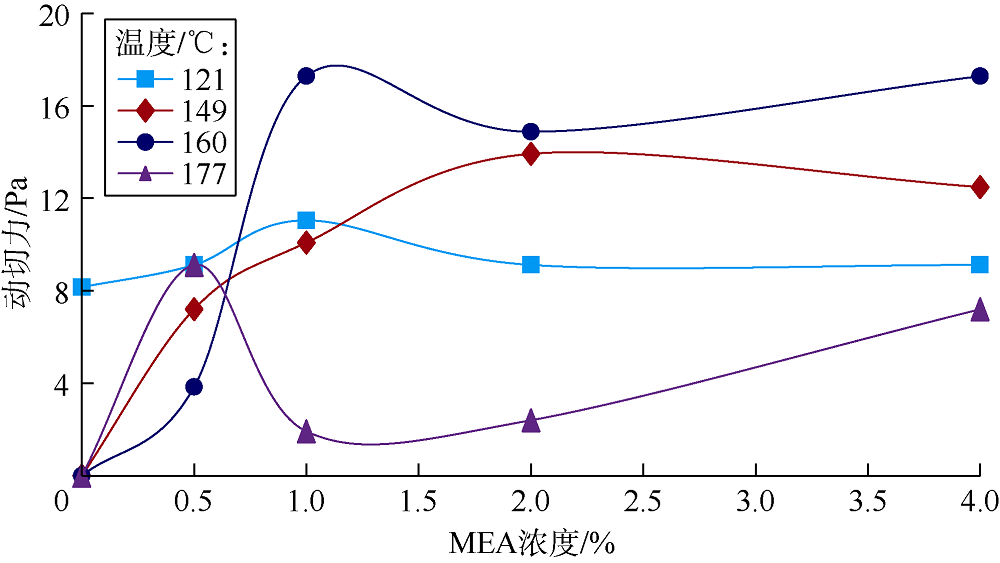

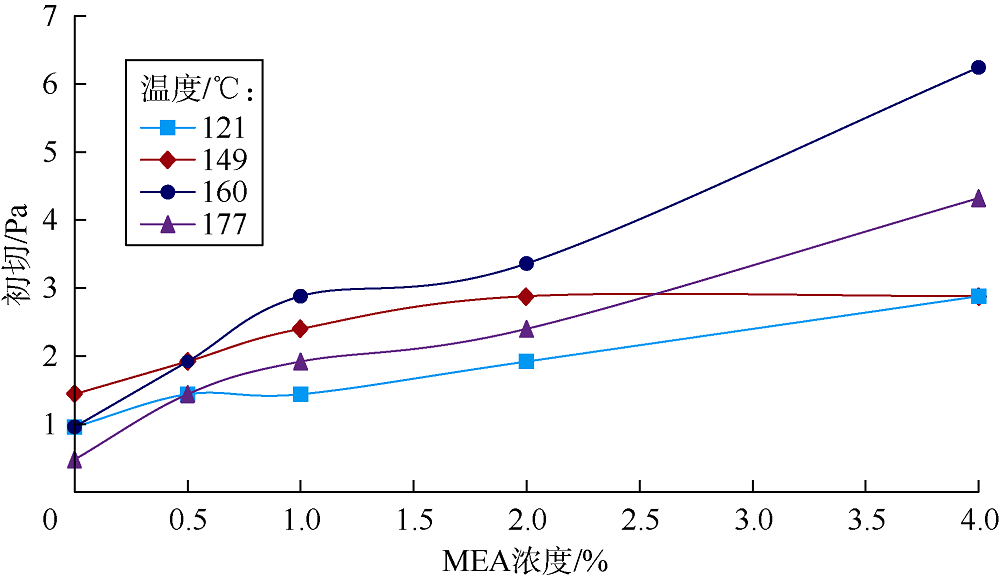

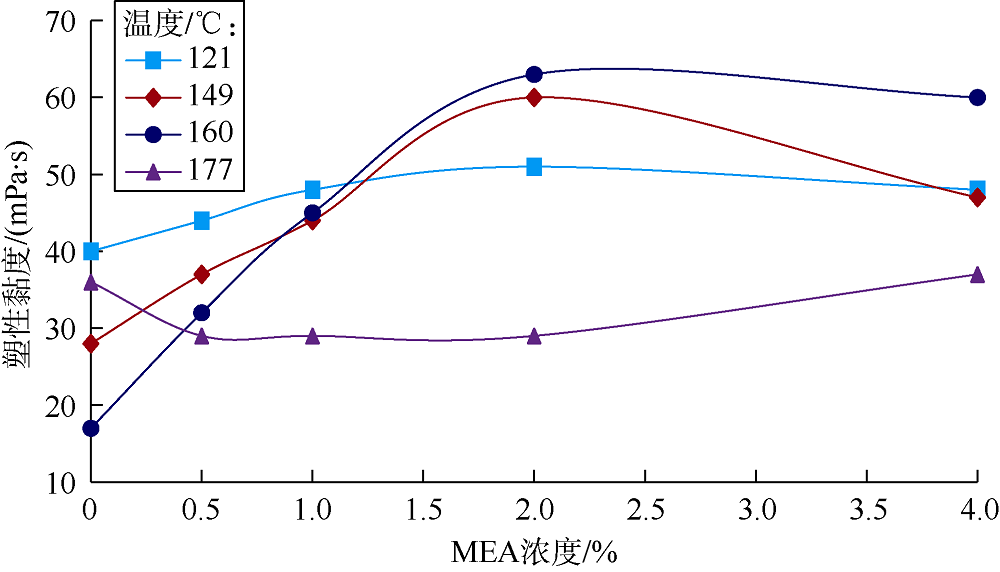

To improve the thermal stability of starch in water-based drilling fluid, monoethanolamine (MEA) was added, and the effect was investigated by laboratory experiment. The experimental results show that the addition of monoethanolamine (MEA) increases the apparent viscosity, plastic viscosity, dynamic shear force, and static shear force of the drilling fluid, and reduces the filtration rate of drilling fluid and thickness of mud cake apparently. By creating hydrogen bonds with starch polymer, the monoethanolamine can prevent hydrolysis of starch at high temperature. Starch, as a natural polymer, is able to improve the rheological properties and reduce filtration of drilling fluid, but it works only below 121 ℃. The MEA will increase the thermal stability of starch up to 160 ℃. There is a optimum concentration of MEA, when higher than this concentration, its effect declines.
LIUX, WANGY, YUL, et al. Thermal degradation and stability of starch under different processing conditions[J]. , 2013, 65(1/2): 48-60. [本文引用:2]
[7]
WARDI, CHAPMAN JW, WILLIAMSONR. New viscosifier for water based muds based on a genetically modified starch[R]. , 1999. [本文引用:2]
[8]
ISMAILI, IDRIS AK. The prospect of utilising local starches as fluid loss control agents in the petroleum industry[C]//, 1997. [本文引用:2]
[9]
OGUGBUE CE, RATHAN MP, SHAH SN. Experimental investigation of biopolymer and surfactant based fluid blends as reservoir drill-in fluids[R]. , 2010. [本文引用:1]
[10]
LUISP. Use of monoethanolamine (MEA) for CO2 capture in a global scenario: Consequences and alternatives[J]. , 2016, 380: 93-99. [本文引用:1]
[11]
PREVENTION IP. Control reference document on best available techniques for the manufacture of organic fine chemicals: Ammonia, acids and fertilisers[R]. , 2007. [本文引用:1]
[12]
BARA JE. What chemicals will we need to capture CO2?[J]. , 2012, 2(3): 162-171. [本文引用:1]
[13]
JAINR, MAHTOV. Evaluation of polyacrylamide/clay composite as a potential drilling fluid additive in inhibitive water based drilling fluid system[J]. , 2015, 133: 612-621. [本文引用:1]
[14]
HYLKES, GERHARDS, ALIG. Role of starch in designing nondamaging completion and drilling fluids[R]. , 2002. [本文引用:1]
